K-Tech Suspension (Kawasaki ZX-10R/ZX-10RR 2016-)

SKU : 130-016-150-020

Regular price Rs. 90,990.00 Sale

K-Tech Suspension (Kawasaki ZX-10R/ZX-10RR  2016-) products/155-013-250-010_2_2_a284affd-ab10-4bc7-9c26-2d1afd7b4f2f.jpg
K-Tech Suspension (Kawasaki ZX-10R/ZX-10RR  2016-) products/125-013-250-010_1_b335ee64-c6fc-4578-98c8-e18b01b30302.jpg
K-Tech Suspension (Kawasaki ZX-10R/ZX-10RR  2016-) products/fss-011_1_381aaeb5-9eb5-4256-825e-3014a56c020b.jpg
K-Tech Suspension (Kawasaki ZX-10R/ZX-10RR  2016-) products/sbs-011_1_37bdb42c-fe7e-46fe-9aa0-f7fac1ffda5c.jpg
K-Tech Suspension (Kawasaki ZX-10R/ZX-10RR  2016-) products/dss-005_1_fd9d2f5c-5995-4204-a358-8954b1ec9ab1.jpg
K-Tech Suspension (Kawasaki ZX-10R/ZX-10RR  2016-) products/sds_a_1_e8269fb5-38ac-4335-bac3-1cf201c82bc0.jpg
K-Tech Suspension (Kawasaki ZX-10R/ZX-10RR  2016-) products/245-011-150-010_b_80a47281-94e4-4974-9dc0-5445b09bec09.jpg
K-Tech Suspension (Kawasaki ZX-10R/ZX-10RR  2016-) products/255-011-150-010_1_f16cd1f6-6e87-4724-8d37-1bfe1ba46895.jpg
K-Tech Suspension (Kawasaki ZX-10R/ZX-10RR  2016-) products/sbs-010_1_1_4f212b5a-ca2d-46a1-9948-8e27a82ec070.jpg

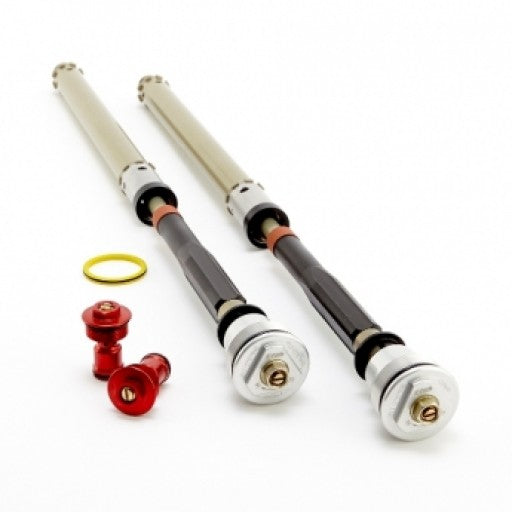

Front Fork Cartridges 25IDS + Springs + Oil

K-Tech 20IDS (20mm Independent Damping System) front fork cartridges are a complete replacement damping system designed to fit into original equipment front forks that do not allow for external compression adjustment. The 20IDS cartridges are designed and manufactured in house to the same standard as all our performance products using the highest grade materials and processes. The 20IDS cartridges have independent compression and rebound damping adjustment and spring preload.

  • 30 clicks independent compression adjustment
  • 30 clicks independent rebound adjustment
  • 18mm preload adjustment
  • Hard chrome piston rod
  • Aircraft grade aluminium
  • Hard anodised and super finished components
  • Range of spring rates available

The 20IDS cartridges are only available through K-Tech authorised dealers who have been trained to install these products, there are specialist tools and techniques required to guarantee performance and safety of this product.

Technical Specifications

SKU 130-016-150-020
SKU Barcode 5056106127658
Inner Diameter 25.0
Outer Diameter 1 14.0
Length 686.5
Compression Clicks 14.0
Stroke 125.0
Preload Clicks 8.0
Rebound Clicks 18.0
Note Uses 36-260- Springs

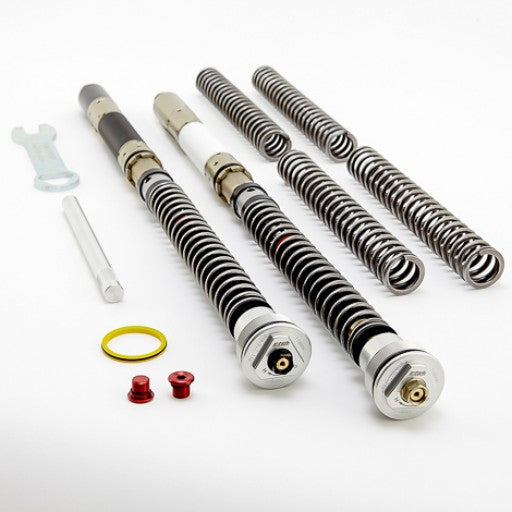

Front Fork Cartridge DDS + Springs (3 Sets)

K-Tech DDS (Direct Damping System) front fork cartridges are a complete replacement damping system designed and manufactured in the UK for high end racing applications. The DDS cartridge is a pressurised damping system using 20mm displacing pistons to create a high flow of oil through the 31mm control valves to give precise damping control. The patent design eliminates cavitation making the system very stable under extreme conditions, the damping circuits are designed to work independently to improve the dynamics and response time. The system is pressurised by a spring force keeping it stable under all working temperatures.

  • 30 clicks compression adjustment
  • 30 clicks rebound adjustment
  • 18mm spring preload adjustment
  • DDS technology
  • 8mm piston rod for reduced system displacement
  • 20mm displacing piston for large oil flow and increased damping control
  • 31mm control piston for increased feel and response time
  • Patent design to eliminate cavitation
  • Supplied with three pairs of springs and tools needed to change them
  • Wide range of spring rates available
  • Used at the highest levels of racing including British Superbike and Isle of Man TT

The DDS cartridges are only available through K-Tech authorised dealers who have been trained to install these products, there are specialist tools and techniques required to guarantee performance and safety of this product.

SKU 155-016-150-020
SKU Barcode 5056106151172
Inner Diameter 20.0
Inner Diameter 2 32.0
Outer Diameter 1 8.0
Length 686.0
Compression Clicks 16.0
Stroke 125.0
Preload Clicks 10.0
Rebound Clicks 18.0
Note Uses 36-260- Springs

Front Fork Guide Bush (Pair)

K-Tech front fork guide bushes are a direct replacement and manufactured to the exact standards of the original equipment parts. They are manufactured from hardened steel and coated with copper for added protection. The contact surfaces are a PTFE material designed to give low friction on the moving parts. All guide bushes are supplied in pairs and available for most fitments.

SKU GBS-019
SKU Barcode 5056106120048
Inner Diameter 43.0
Height1 15.0
Thickness 2.0

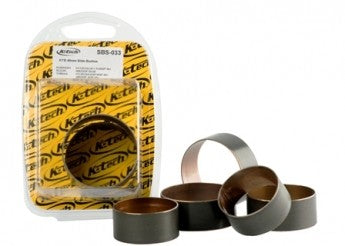

Front Fork Slide Bush -Pair

K-Tech front fork slide bushes are a direct replacement and manufactured to the exact standards of the original equipment parts. They are manufactured from hardened steel and coated with copper for added protection. The contact surfaces are a PTFE material designed to give low friction on the moving parts. All guide bushes are supplied in pairs and available for most fitments.

SKU SBS-022
SKU Barcode 5056106121205
Outer Diameter 1 44.7
Height1 20.0
Thickness 1.5

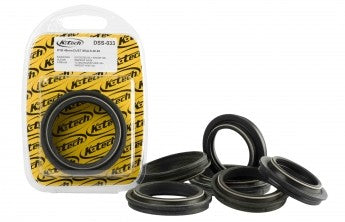

Front Fork Dust Seals (Pair)

K-Tech front fork dust seals are manufactured by NOK and are a direct replacement for the original equipment parts. NOK are chosen as original equipment by all Japanese suspension manufacturers for their quality and durability. All dust seals are supplied in pairs and available for most fitments.

SKU DSS-013
SKU Barcode 5056106103522
Inner Diameter 43.0
Outer Diameter 1 54.2
Height1 6.0
Height2 11.0

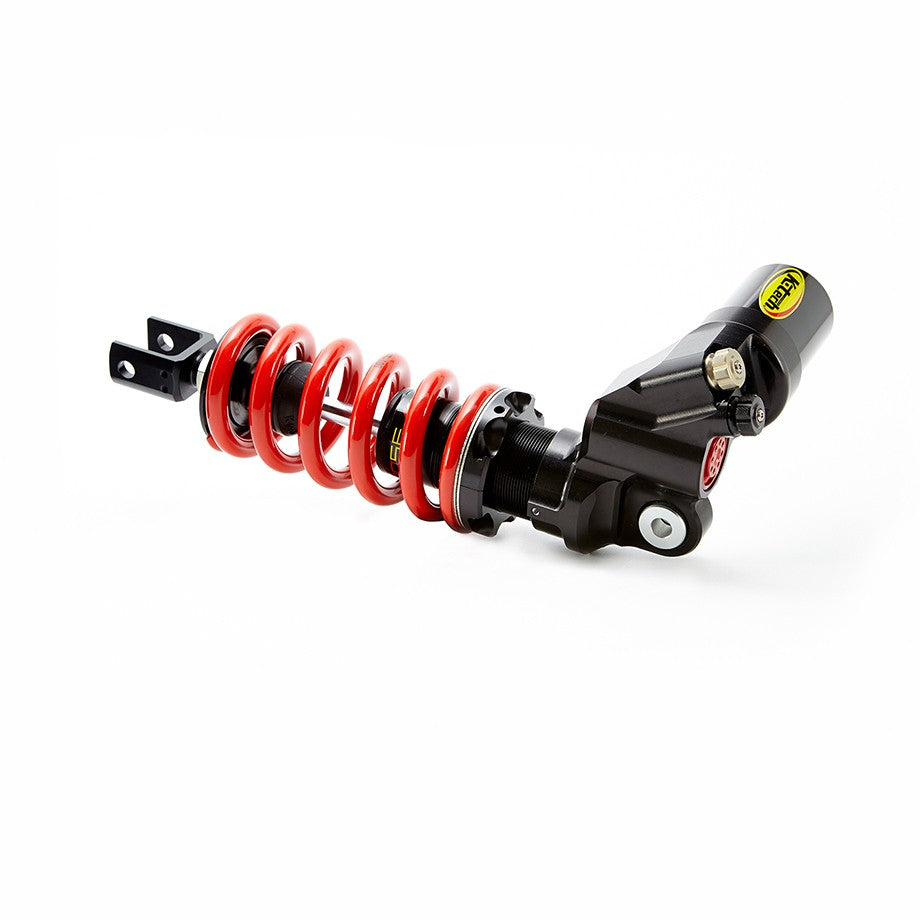

Shock Absorber -DDS Lite

The K-Tech DDS "Lite" rear shock has been designed as an entry level product for the customer that demands a high level of performance at a competitive price. Sharing all the same high quality components as the DDS "Pro" version the DDS "Lite" performs to the same high level without the hydraulic spring preload adjustment or the "unique" Bypass Valve adjustment that is found on the "Pro" version. This shock can be upgraded to the "Pro" specification at a later date.

  • 4 way adjustable
  • 32 clicks compression adjustment
  • 32 clicks rebound adjustment
  • Manual spring preload adjustment
  • Length adjustment
  • CNC machined components
  • DDS technology
  • Able to upgrade to "Pro" specification
  • Wide range of spring rates available
SKU 245-016-150-020
SKU Barcode 5056106151943
Length 309.0
Force (N) 100.0
Force in Bar 5.0
Compression Clicks 12.0
Stroke 55.0
SKU Tolerance '-0/+6
Preload Clicks 12.0
Rebound Clicks 12.0
RCU adjustment ways 4.0
Upper Mount Type Eye
RCU Body Diameter 35.0
Lower Mount Type Eye
Lower Mount Width 30.0
Lower Mount Bolt Diameter 10.0
RCU Rod Diameter 12.0
Note Uses 55-155- Springs

Shock Absorber -DDS Pro

The K-Tech DDS "Pro" rear shock has been designed for use at the highest level of racing and developed in major championships around the world. Like all other K-Tech products it has been designed and manufactured in the UK using the latest design software and highest grades of materials. As you would expect from a high quality racing product, the DDS "Pro" features compression and rebound damping adjustment, length adjustment and hydraulic spring preload adjustment. It also features our unique ByPass Valve adjuster which controls both compression and rebound damping adjustment to assist with chassis control at low velocity shock movement to enhance tyre feel and grip. The DDS system uses a smaller piston rod which keeps the system more stable over a wider temperature range due to its small displacement. Damping is controlled by a 32mm piston which allows the use of larger shims for improved feel.

  • 5 way adjustable
  • 32 clicks compression adjustment
  • 32 clicks rebound adjustment
  • 16 clicks BPV adjustment
  • Hydraulic spring preload adjustment
  • Length adjustment
  • CNC machined components
  • DDS technology
  • Potentiometer mounting points
  • Wide range of spring rates available
  • Used at the highest levels of racing including British Superbike and Isle of Man TT
SKU 255-016-150-020
SKU Barcode 5056106152322
Length 309.0
Force (N) 100.0
Force in Bar 5.0
BPV Clicks 8.0
Compression Clicks 12.0
Stroke 55.0
SKU Tolerance '-0/+6
Preload Clicks 12.0
Rebound Clicks 12.0
RCU adjustment ways 5.0
Upper Mount Type Eye
RCU Body Diameter 35.0
Lower Mount Type Eye
Lower Mount Width 30.0
Lower Mount Bolt Diameter 10.0
RCU Rod Diameter 12.0
Note Uses 55-155- Springs

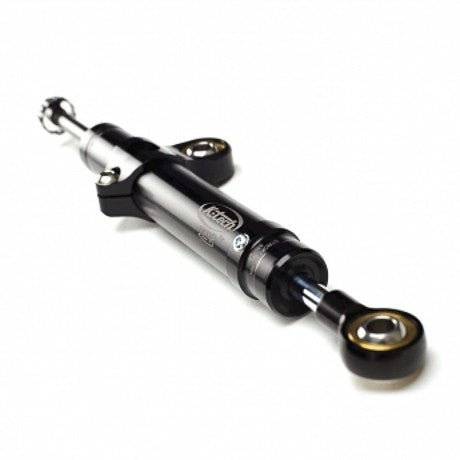

Steering Damper -Race

K-Tech steering dampers are a lightweight aluminium design available for many applications, manufactured in conjunction with Toby Dampers. Available in seven lengths for road and race use they are fully serviceable and come supplied with all the necessary mounting components to fit the make and model of the motorcycle.

  • Adjustable
  • Lightweight aluminium design
  • Supplied with fitting hardware
  • Fully serviceable
  • Available for street or race use.
SKU 055-55.KA10.10
SKU Barcode 5056106119028
Note Under Clocks
