Description
This GSG crash pad set is the perfect fall protection for the areas of the frame, engine, transmission and fairing parts of your bike - in other words: the heart of your motorcycle!
ssembly: Single/direct screw connection via adapter/thread on the frame
The GSG DUO-Safety crash pad sets reliably protect the frame, engine, transmission and fairing parts of your bike - in other words: the heart of your motorcycle. In the event of a fall or a fall, the plastic pads prevent the critical areas from grinding through, breaking or being otherwise affected - and have been doing so for over 30 years.

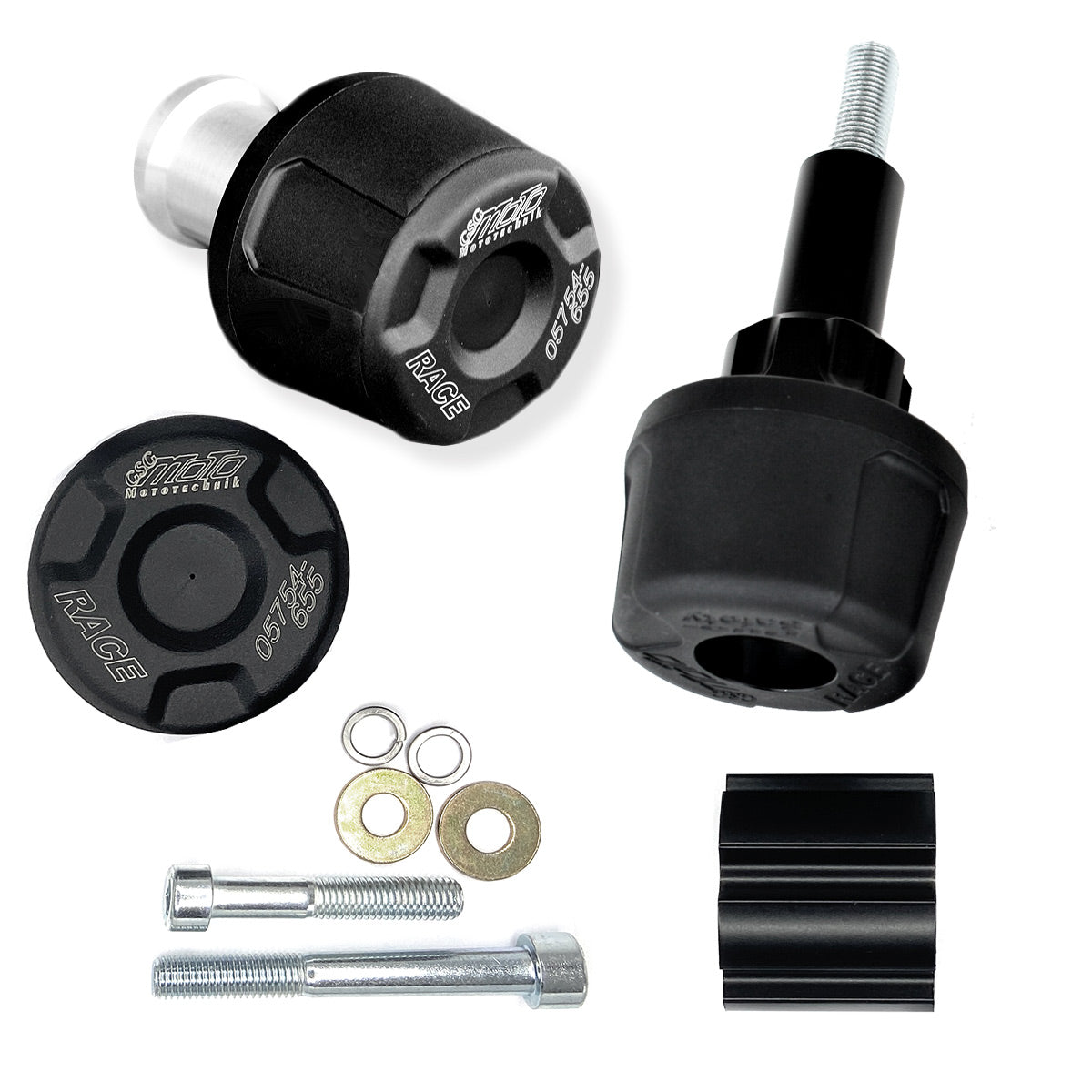

You will receive:

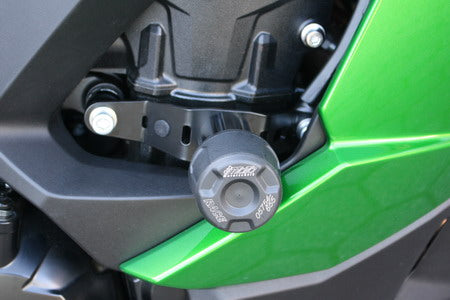

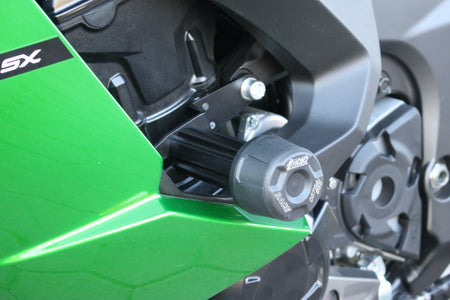

GSG crash pad set for: Kawasaki Ninja 1000 SX (2020 -)
Color of the pads: black or white
Changes to the bike: none
Notes:
Comments:
Assembly: single/direct screw connection via adapter/thread on the frame
features
- The GSG pads are made of specially selected high-performance plastic and precisely turned by CNC (Pad runners in the Streetline version and engine cover attachments/protection are CNC-milled from solid plastic material)
- The large contact surface of ~60mm optimally absorbs the forces that occur in the event of a fall / fall (contact surface for Streetline and engine cover protection etc. is even larger due to the construction!)
- Precisely calculated radii on the edges of the pads ensure an optimal gliding effect, which brakes the bike in a calculated manner during the slipping phase of a fall, without generating excessive bending and leverage forces on the bike/mount and thus avoiding further damage, but providing sufficient braking effect to brake the bike efficiently.

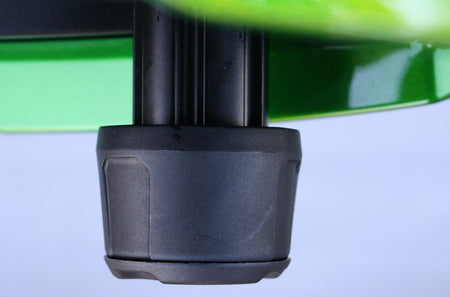

- All GSG crash pad sets are so-called DUO Safety crash pads : Additional shock absorber caps are attached to the pads using a press connection and absorb an additional 1300 N (130 kg) of impact weight in the event of a fall/fall. The highlight: the damper caps are interchangeable and can be bought inexpensively from our spare parts!
- Except for a few models, an aluminum flange/adapter (2-part construction) or a CNC milled aluminum carrier plate serves as a mount for the plastic pad. This is the only way to ensure that the pad and motor are firmly seated in the long term.
- The attachment adapters and carrier plates are made of a special aluminum alloy
- Calculated predetermined breaking points and predetermined bending points at the connection points of the pads on the carrier plates or on the base carrier/adapter provide additional security. Before extreme leverage forces are transferred to the frame or motor mount, the pads give way from a certain force - consequential damage can thus be almost ruled out.
- To ensure the pads fit correctly, GSG pads are equipped with a pressed-in steel bushing - exactly at the point where there is a direct connection to the frame or engine. This means that the manufacturer's torque values for fastening can be correctly observed - secure fit of the pads and the motor guaranteed (plastic is an elastic material, therefore only a maximum of 30 Nm can be achieved as a tightening torque without a steel bush and you will probably end up with a loose, vibrating Driving a motor In the event of a fall, enormous leverage forces act on the frame eye due to an only minimally loosened motor bolt and the thread can easily expand or tear out at the corresponding point) !
- More than 30 years of experience in racing and on the road make our GSG pads the most tried and tested products in the field of fall protection! Many professional racing teams swear by GSG - and many motorcyclists worldwide are also convinced and trust the quality and decades of expertise of GSG.
