K-Tech Suspension (KTM Duke/RC 390 2017-)
K-Tech Suspension (KTM Duke/RC 390 2017-)
K-Tech Suspension (KTM Duke/RC 390 2017-)
K-Tech Suspension (KTM Duke/RC 390 2017-)
K-Tech Suspension (KTM Duke/RC 390 2017-)
K-Tech Suspension (KTM Duke/RC 390 2017-)

K-Tech Suspension (KTM Duke/RC 390 2017-)

SKU : 120-014-155-005

Regular price Rs. 82,990.00 Sale

We have 1 in stock.
Complete The Look

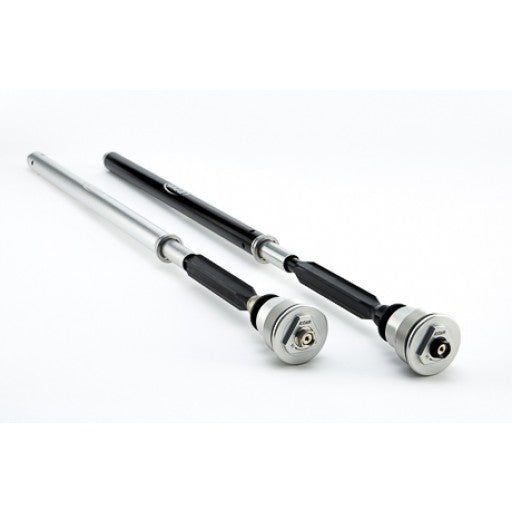

Front Fork Cartridges 25IDS + Springs + Oil

K-Tech 20IDS (20mm Independent Damping System) front fork cartridges are a complete replacement damping system designed to fit into original equipment front forks that do not allow for external compression adjustment. The 20IDS cartridges are designed and manufactured in house to the same standard as all our performance products using the highest grade materials and processes. The 20IDS cartridges have independent compression and rebound damping adjustment and spring preload.

  • 30 clicks independent compression adjustment
  • 30 clicks independent rebound adjustment
  • 18mm preload adjustment
  • Hard chrome piston rod
  • Aircraft grade aluminium
  • Hard anodised and super finished components
  • Range of spring rates available

The 20IDS cartridges are only available through K-Tech authorised dealers who have been trained to install these products, there are specialist tools and techniques required to guarantee performance and safety of this product.

Technical Specifications

SKU 120-014-155-005
SKU Barcode 5056106156863
Inner Diameter 20.0
Outer Diameter 1 10.0
Preload Clicks 18.0
Note Rec Spring 36-260-



Rear Shock Absorber - Razor-R

The K-Tech Razor-R shock absorber offers refined handling and enhanced performance over the standard equipment. The Razor-R shock absorber is designed with quality and performance in mind featuring, compression and rebound damping, spring preload and length adjustment to allow owners of middleweight motorcycles to improve their ride with sporty aesthetics and improved performance.

  • Increased performance and control
  • Compression damping adjustment
  • Rebound damping adjustment
  • Spring preload adjustment
  • Length adjustment
  • Nitrogen (N2) filled
  • Simply bolts on to replace original equipment
  • Spring rate options available
KU 279S-014-155-005
SKU Barcode 5056106153251
Length 303.5
Force (N) 100.0
Force in Bar 10.0
Compression Clicks 12.0
Stroke 53.0
SKU Tolerance '-7/+3
Preload Clicks 11.0
Rebound Clicks 14.0
RCU adjustment ways 4.0
Upper Mount Type Eye
RCU Body Diameter 35.0
Lower Mount Type Eye
Lower Mount Width 41.0
Lower Mount Bolt Diameter 10.0
RCU Rod Diameter 14.0
Note Spring 46-150

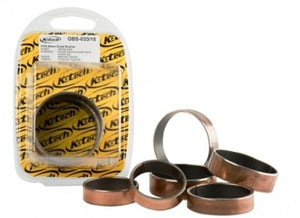

Front Fork Guide Bush (Pair) - 43x12x2.00

K-Tech front fork guide bushes are a direct replacement and manufactured to the exact standards of the original equipment parts. They are manufactured from hardened steel and coated with copper for added protection. The contact surfaces are a PTFE material designed to give low friction on the moving parts. All guide bushes are supplied in pairs and available for most fitments.

SKU GBS-011
SKU Barcode 5056106119974
Inner Diameter 43.0
Height1 12.0
Thickness 2.0

Front Fork Slide Bush -Pair (43.70x20x1.00)

K-Tech front fork slide bushes are a direct replacement and manufactured to the exact standards of the original equipment parts. They are manufactured from hardened steel and coated with copper for added protection. The contact surfaces are a PTFE material designed to give low friction on the moving parts. All guide bushes are supplied in pairs and available for most fitments.

SKU SBS-011
SKU Barcode 5056106121151
Outer Diameter 1 43.7
Height1 20.0
Thickness 1.0

Front Fork Oil Seals (Pair) 43mm -NOK

K-Tech front fork oil seals are manufactured by NOK and are a direct replacement for the original equipment parts. NOK are chosen as original equipment by all Japanese suspension manufacturers for their quality and durability. All oil seals are supplied in pairs and available for most fitments.



U FSS-011
SKU Barcode 5056106121519
Inner Diameter 43.0
Outer Diameter 1 52.7
Height1 9.5
Height2 10.5



Front Fork Travel Indicator (43mm)

K-Tech front fork and shock absorber tuning parts are designed to help suspension technicians to improve the performance of original equipment products. All parts are designed to the exact standards as all other K-Tech products using over fifteen years of competition expertise to provide High Performance Tuning Parts

SKU 25K-028B
SKU Barcode 5056106122448
Inner Diameter 43.0
