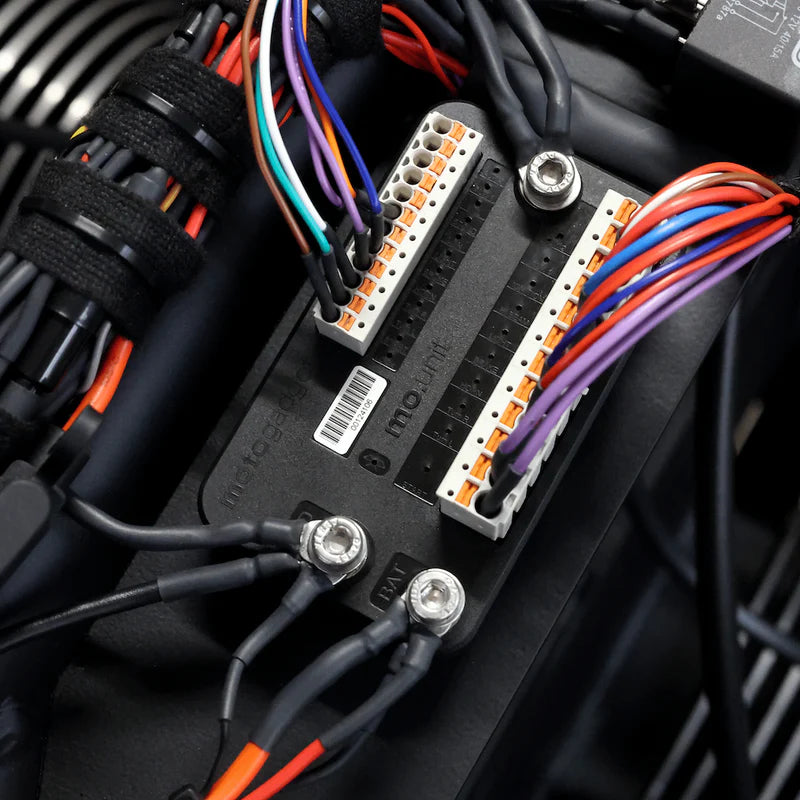

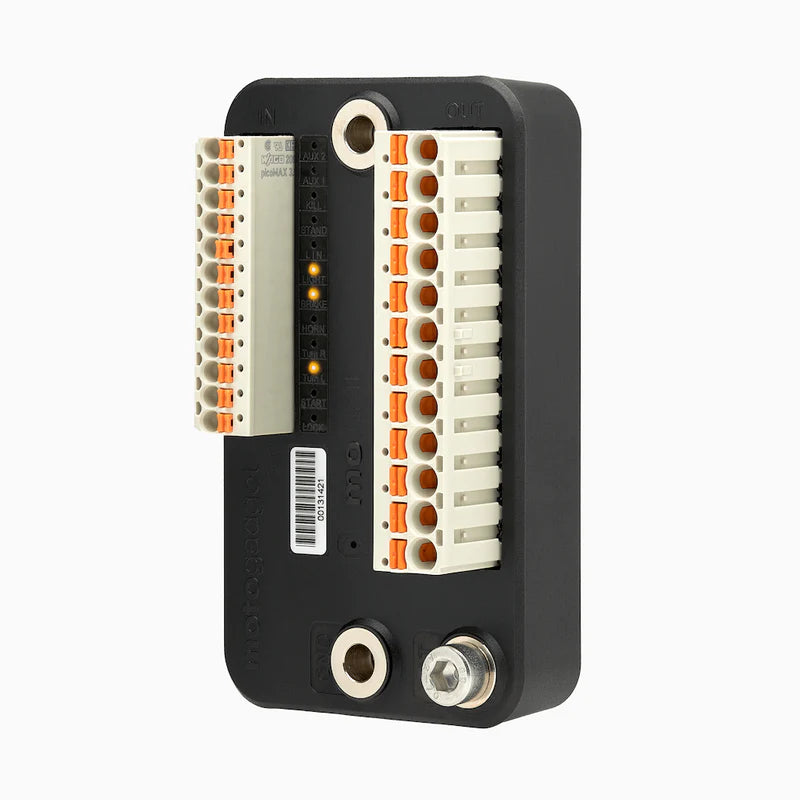

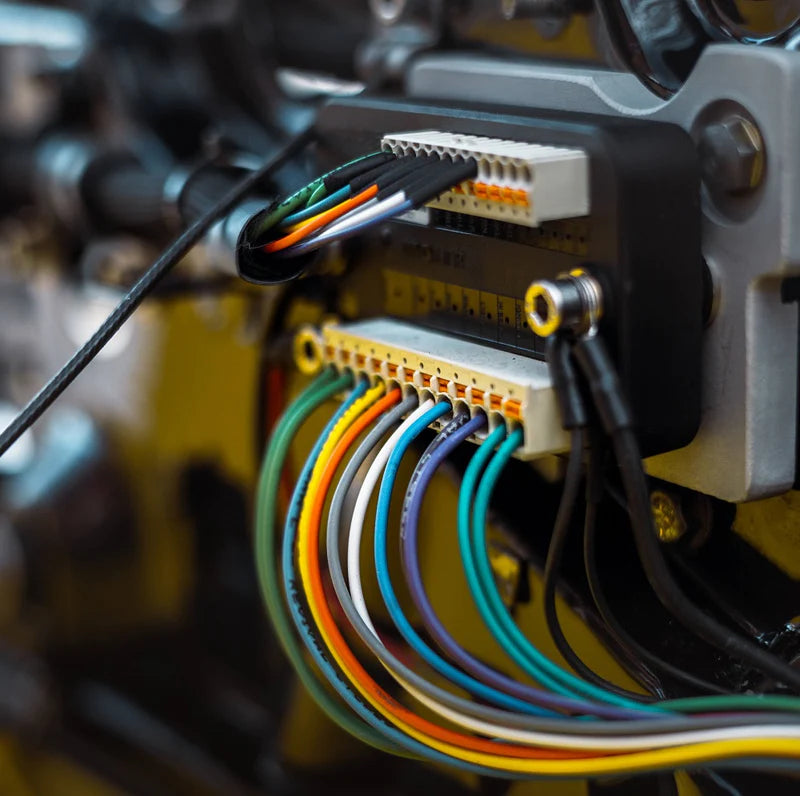

The mo.unit blue is a unique control unit, our digital masterpiece. The innovative vehicle electrics allow individual configuration and the space-saving design can be easily hidden on the motorcycle
Functions
- Push-button control for 4 or 5-button operation
- Replacement of the vehicle fuses
- Alarm system
- Load-independent flasher relay
- Hazard warning lights
- Blinker as position light (adjustable)
- Time-controlled blinker switch-off
- Path-controlled turn signal deactivation (speedometer sensor required)
- Parking light and headlight flasher integrated
- Control of low beam and high beam with one button
- Stop light modulator (8 adjustable modes)
- Emergency stop light
- Garage light
- Fan run-on
- Hyperbeam (200W high beam + low beam)
- Starter relay for starter with magnetic switch (max. 30 A)
- Intelligent switch-off of consumers at startup
- Integrated, digital horn relay
- Two configurable additional outputs AUX1 and AUX2
- Complete wiring system diagnostic function
- Defect detection of all light sources
Functions with the mo.ride app
- Keyless-Go (ready to start when approached with a smartphone)
- Tour log in mo.ride with fun factor, number of bends, top speed, etc.
- Alarm events with date, time, vehicle on the ground, etc.
- Setting the mode and sensitivity of the alarm system
- Monitoring the battery voltage
- Diagnosis of all inputs and outputs with currents and voltage
- Defect detection of light sources
- Rideassist: turn signal sound and errors as audio via helmet headset
- Manual switching of outputs via smartphone (except starter)
- Firmware updates at any location
- Configuration of the setup menu
- Vehicle management with information on maintenance tasks
- All trips and messages in chronological order in the logbook
- Display of parking position and Ping! to help with vehicle search
- Secure, encrypted connection via Bluetooth® LE
- ultra-low-power standby: low power consumption when stationary
Compatibility iPhone from iOS 15 / Android from 11 (availability may be limited) Further information at mo.ride.de
- Dimensions 90 x 53 x 30mm (L/W/H)
- Waterproof, vibration-resistant - IP69
- Weight approx. 180 g
- Fastening 2 x M5 screw, distance 74mm
- Operating voltage 6 V - 20 V
- Operating temperature -20° to +80°C
Inputs
- Ignition lock +12V or mo.lock
- Turn signal left
- Turn signal right
- Light
- Starter
- Horn
- Brake light
- Kill
- Side stand
- LIN bus
- AUX1
- AUX2
Outputs
- Turn signal left
- Turn signal right
- Low beam
- High beam
- Starter
- Horn
- Brake light
- Ignition
- AUX1 (Universal)
- AUX2 (Universal)
